RADAR room exercise 5

Position fixing with a RADAR

Measuring ranges and bearings

All RADAR sets have the ability to measure angles and distances. You can then draw these onto a chart to plot your position.


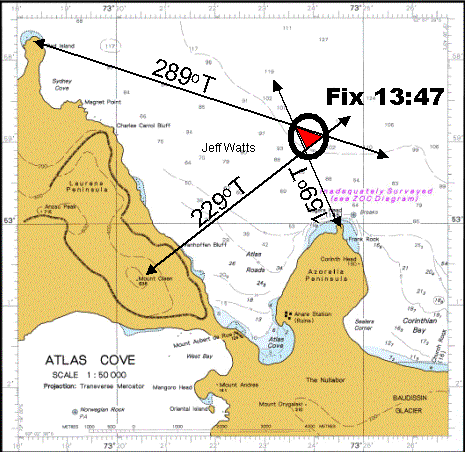

Plotting a position with three bearings	Plotting a position with three ranges

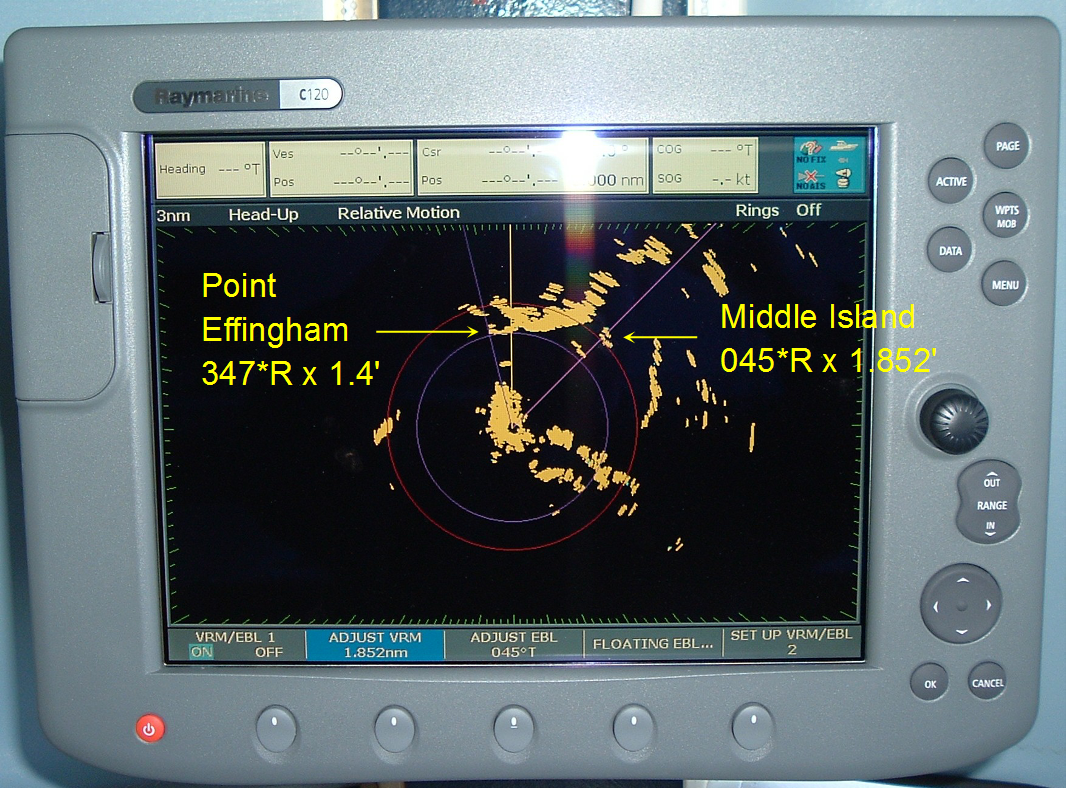

Middle Island is shown below as being

• 45 degrees Relative from the vessels heading, to which the RADAR is aligned.
• 1.852 nautical miles from the RADAR room.
• Note:
  • These angles are always measured in a clockwise direction.
  • R stands for Relative and T stands for True.
  • I was forced to use an asterisk * for degrees on the drawings - don't do this.
  • The abbreviation used for nautical miles and minutes is '.

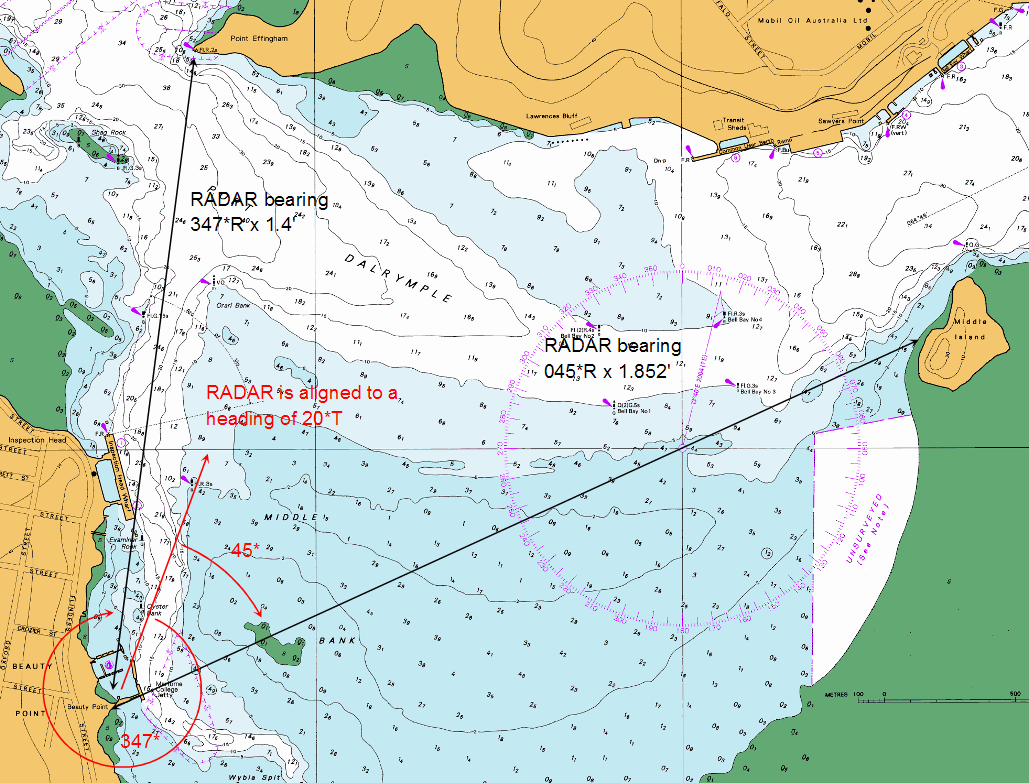

Point Effingham is shown below as being

• 347 degrees Relative and
• 1.4 nautical miles.

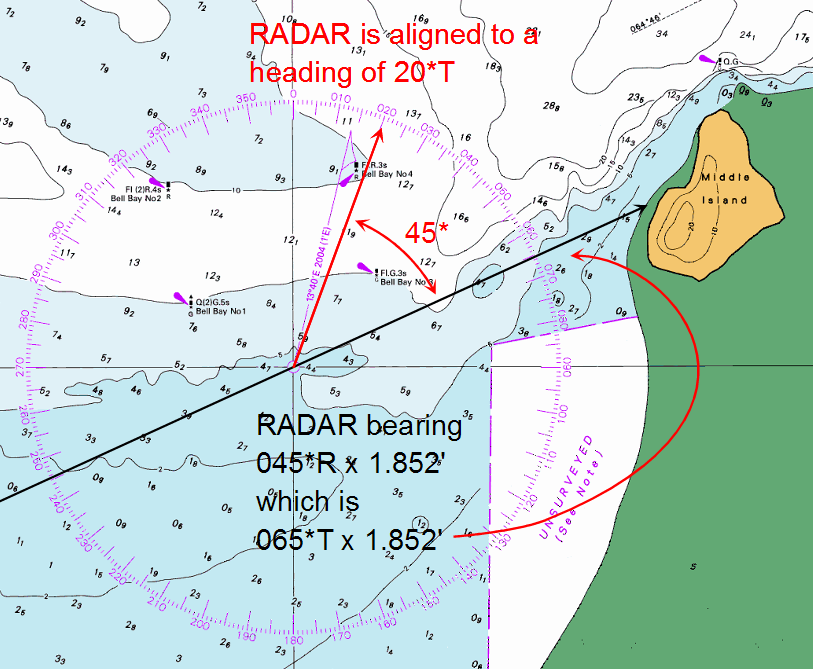

Converting relative bearings to true bearings

All Relative bearings must be converted into True before they can be plotted onto a navigational chart.



To convert Relative bearings to True, do this:

Ranges

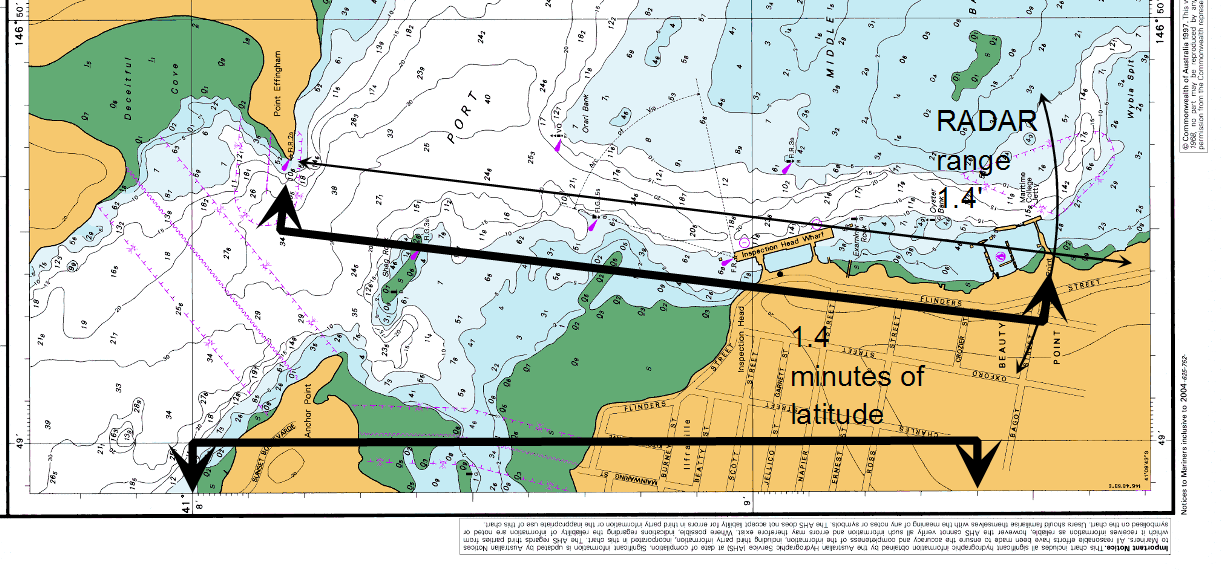

The distance of 1.4 nautical miles can be measured off the latitude scale as 1.4 minutes of latitude, and scribed from Point Effingham with a compass or divider:

Exercise

Click here to go to an exercise about using the RADAR to find the range and bearing of some objects you can see from the RADAR room.
