RADAR room exercise 3

Koden MD - 3751

1. Check it is on at the powerpoint.

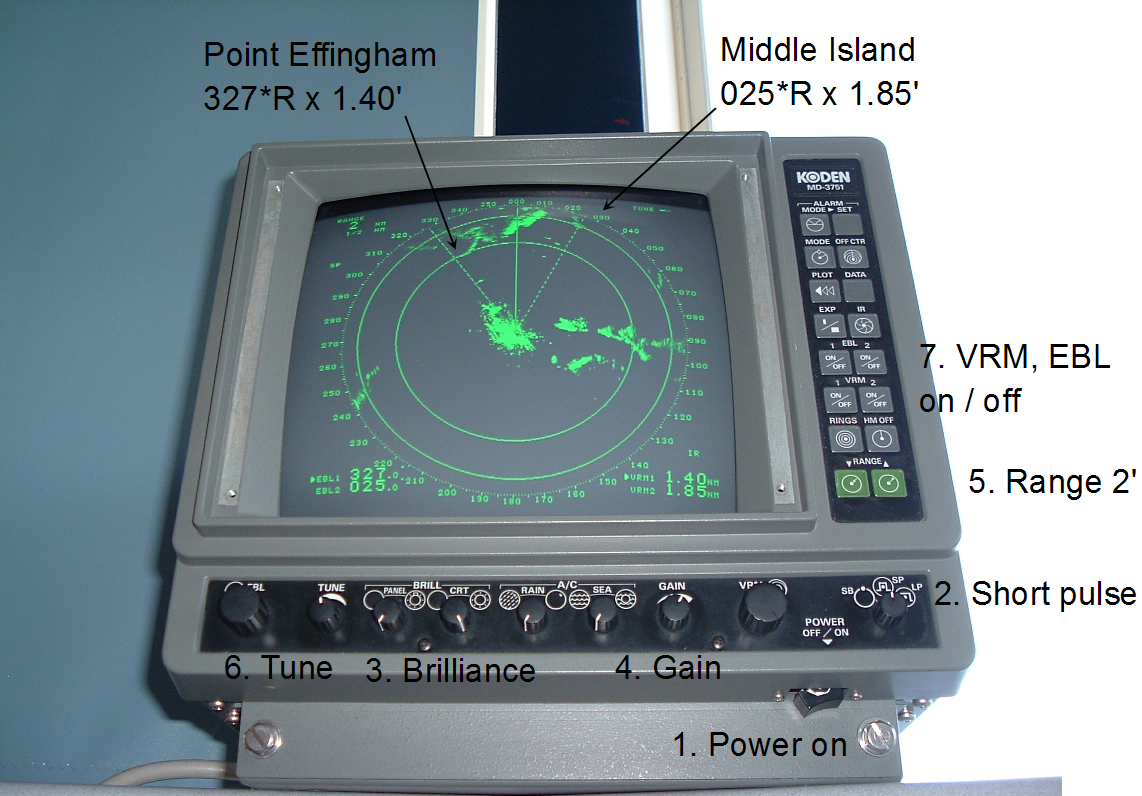

2. Set up the Koden following the numbered steps on the image - BGRT.
3. Lastly, use the VRM and EBL buttons to turn both sets on, and find the bearing and range of Middle Island and Point Effingham.
4. Click here to learn about position fixing with relative bearings and ranges.
5. Click here to go to an exercise about using the RADAR to find the range and bearing of some objects you can see from the RADAR room.
